NECOFLO-G6 Filler | Powder Filler | High Speed

Next generation volumetric powder granular filling machine with fill weight control for filling into rigid containers.

The NECOFLO-G6 is a next generation, high speed, rotary volumetric powder filler that runs faster, cleaner, provides superior product settling and fill accuracy.

The NECOFLO-G6 is designed for clean, accurate, high speed filling of expensive fine powders or granules such as instant coffee and soluble tea.

Product Benefits

The NECOFLO-G6 has been designed from the ground up and provides the following benefits:

  • The NECOFLO-G6 valve uses controlled valve actuation to be gentle on the product with no compacting or degradation of the product’s integrity.
  • The NECOFLO-G6 container seal is designed with a long life polymer material that accommodates a wide range of container height variation.
  • The NECOFLO-G6 vent system is a bi-flow, self cleaning design, with a large area port size, significantly reducing the possibility of clogging and is easily accessible. The system vents into the fill head minimizing product loss and insuring system cleanliness.
  • The NECOFLO-G6 vibration system is a recipe driven system that provides multiple, independently controlled, vibration zones to insure optimal product settling for each container/product.
  • The NECOFLO-G6 measuring flask is fabricated from stainless steel, insuring long life and greater dimensional stability in varying environments.
  • The NECOFLO-G6 measuring flask is fabricated using a highly precise 5-step process to ensure the tightest tolerances and fill accuracy.
  • The NECOFLO-G6 incorporates a “Lift Table” for each container eliminating pressures and stresses on the container as it moves through the filling
  • The NECOFLO-G6 has a variable height fill head providing complete flexibility to meet your application needs of today and tomorrow.
  • The NECOFLO-G6 incorporates a closed loop gas containment system providing the most efficient modified atmosphere packaging (or MAP) system of any filler on the market today.
  • The NECOFLO-G6 offers an optional “no-container no-fill” system that prevents the valve from opening if a container is missing, dramatically reducing product loss due to missing containers and is useful in priming the filler.
Maximum production rates

Up to 700 Fills Per Minute

Product Applications
  • Freeze Dried Coffee
  • Agglomerated Instant Coffee
  • Spray Dried Instant Coffee
  • Pure Instant Tea
  • Other Non-Abrasive Products
Request a Quote
Request a Quote


Product Video(s)

Product 3D Views

View in 3D
Left Click to Rotate / Right Click to Drag / Scroll to Zoom
Click the "Select an annotation" button to review features

Product brochure(s)

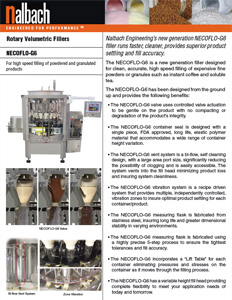

NECOFLO-G6 Brochure

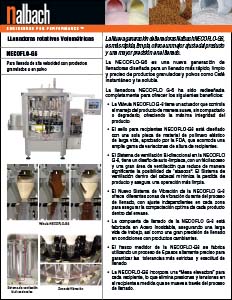

NECOFLO-G6 Brochure - Español
